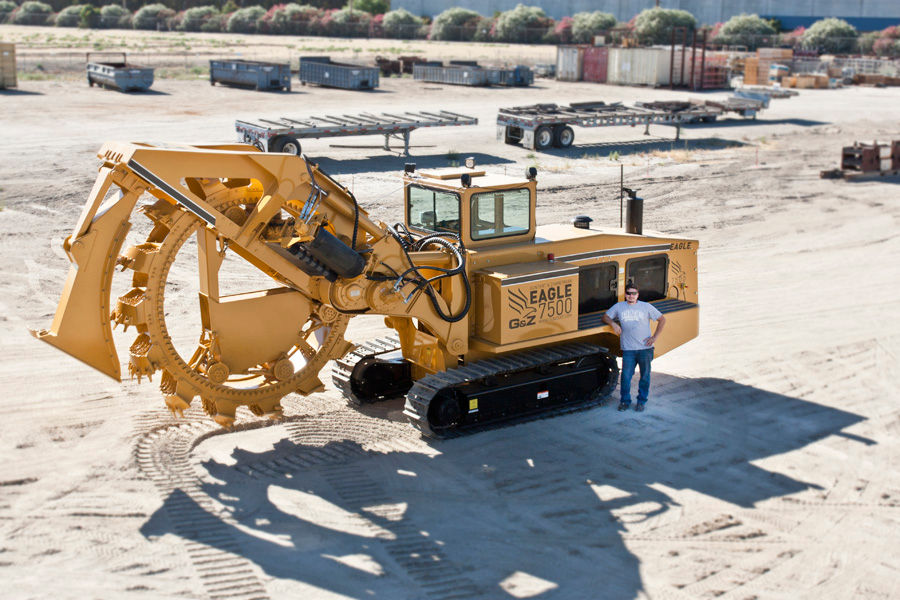

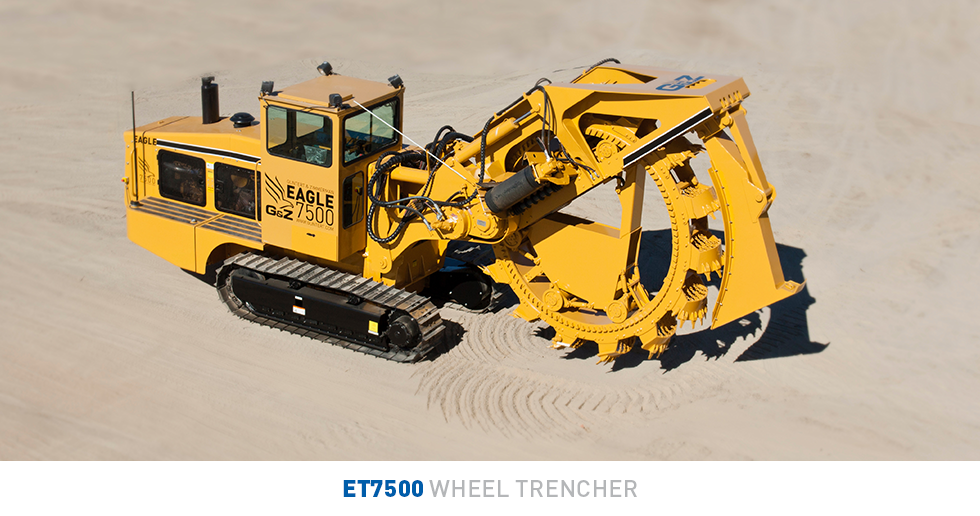

ET7500 Wheel Trencher
ET7500 Wheel Trencher - max. 7 ft (2.13m) deep x 24 to 30 in (610 to 915mm) wide
​
Standard Features:
-
Engine: US EPA Tier 4 Final / EU Stage V compliant, Direct Injection, Turbocharged-Aftercooled (TA), In-line 6 Cylinder CAT C7.1 Diesel Engine, approx. 249 bhp (186 bkW) at 2100 rpm “C” Rating
-
Digging Drive: Hydraulic Motor Driven Gear Box with Integral Flywheel mounted directly to No. 1 Head Shaft
-
Undercarriage: G&Z D4 size Crawler Tracks, rock guards, high reduction planetary gear box with 20 in. (508mm) triple grousers x 8 ft.-6 in (2591 mm) long c to c
-
Conveyor: Reversible Hydraulic Drive for either right or left discharge, 30 in. (762mm) wide x approx. 8 ft. – 10 in. (2692mm) long, rated @ 1000 fpm (305 M/min). Includes Hydraulic Conveyor Shift Mechanism for adjustable discharge.
-
Crumbshoe: Fixed Type / Break Away
-
Digging Wheel: Dual wheel lift cylinders and dual tilt cylinders located on Bridge Type Boom Frame with 1 in. (25mm) Hardox© digging Wheel Rims with cast and heat treated Rim Segments and matched Split sprocket, three heavy-duty adjustable Wheel Trucks and enclosed Stay Rod. Digging Wheel Assembly is connected to the Trencher Body by center pull, articulated mast.
-
Operator Controls: G&Z EGON machine control system with intuitively organized Switches / Joy Sticks labeled with ISO symbols, and LCD Touchscreen User Interface, High Resolution / Anti-glare Color Screen, Ambient Light Sensor controlled Backlighting, and CAN RS-232 or USB interfaces for diagnostics and downloading software updates.
-
Filter Monitoring System
-
Relocatable E-stops provided for each corner of the machine.
-
Anti-Vandalism Locks & Guards
-
Air Ride and adjustable Operator Seat
-
Optional Enclosed Operator Cabin - Air Conditioned and Heated
-
Approx. Weight 56,000 lbs (25,401 kgs)
